وفّر 5%مفتاح ستائر وشيش Tuya Wi-Fi صغير
900 ج.متفاصيل المنتج
الوصف متاح حاليًا باللغة الإنجليزية.
Description

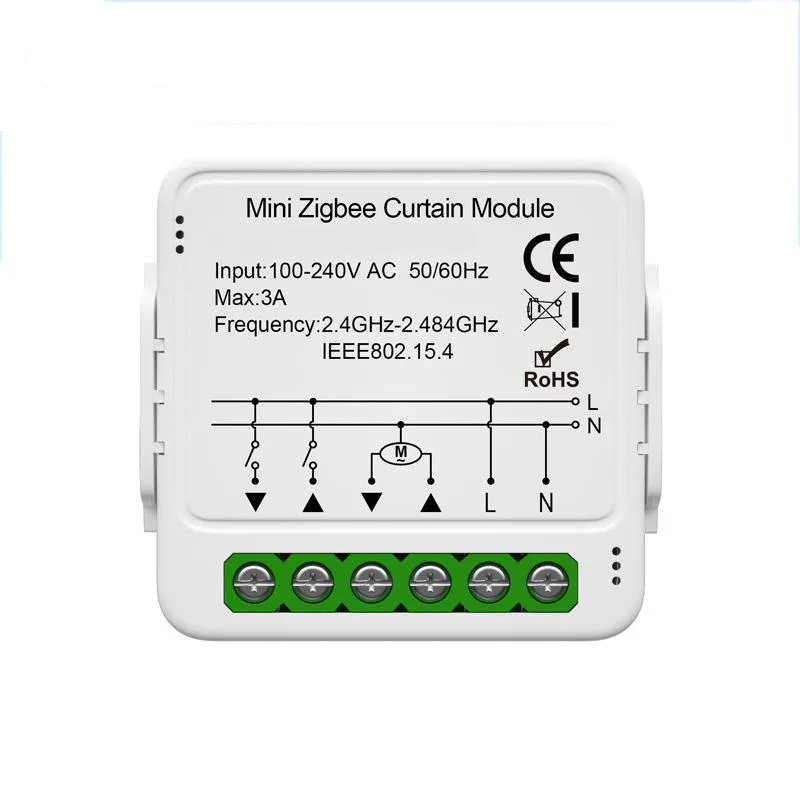

Upgrade your existing motorized curtains, roller shutters, or blinds without changing your style. This Mini Zigbee 1-Channel Smart Curtain Module hides completely inside your wall box or ceiling cavity. Powered by the ultra-stable Zigbee protocol, it offers lightning-fast response times, total remote control via your smartphone, and hands-free voice commands. Perfect for modern smart home integrations, it brings effortless luxury and precise daylight control to any room.
Product Features
- Invisible Mini Design: The ultra-compact body easily slips into standard wall switch boxes or junction boxes behind your existing traditional curtain switches.

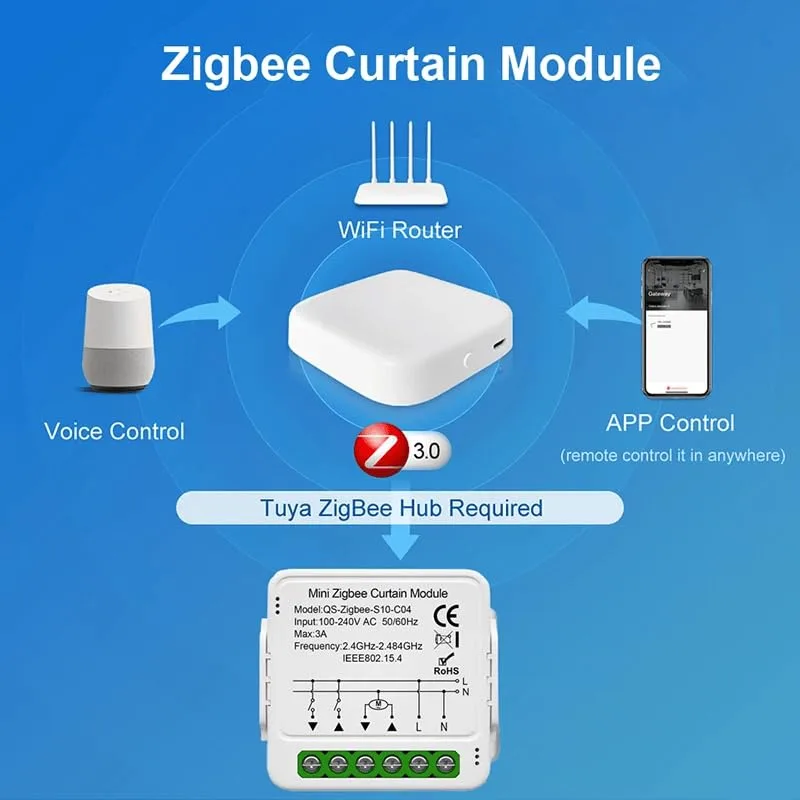

- Rock-Solid Zigbee Stability: Requires a Zigbee Gateway/Hub. It operates on a mesh network, offloading traffic from your WiFi router for faster, more reliable performance.
- Precise Percentage Control: Calibrate your motorized blinds to open or close to exact percentages (e.g., open exactly 40% for perfect morning sunlight).
- Voice & App Automation: Open or close your blinds effortlessly using Alexa, Google Assistant, or the Smart Life / Tuya app.
- Automated Scheduling: Set smart timers linked to your local sunrise and sunset, or create customized schedules to protect your home’s privacy automatically.
- Two-Way Switch Linkage: Retains full manual control from your original physical wall switch while adding complete smart features.
Product Technical Specifications

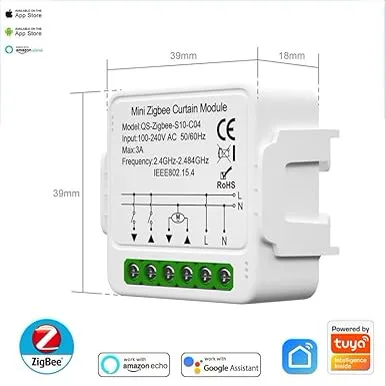

FeatureSpecificationWireless ProtocolZigbee 3.0Input Voltage100V - 240V AC (50/60Hz)Current / Max Load3A (Resistive / Motor Load)Channel Count1-Channel (Controls 1 Motor Line)Operating Temperature-10°C to +40°CIP RatingIP20 (Indoor Use Only)Dimensions39.2mm x 39.2mm x 18mm
Simple Installation Instructions
1.Disconnect Power: Safety First.Turn off the main electrical breaker before starting. Double-check that no voltage is present at the switch box.

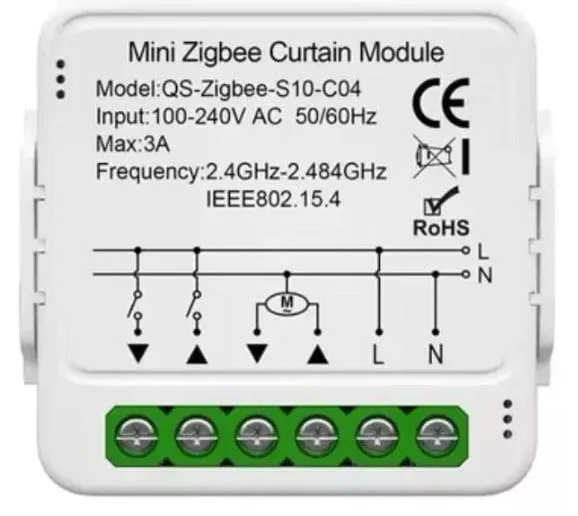

2.Connect the Lines: Identify Wiring.Wire your power supply to the L (Live) and N (Neutral) input terminals. Connect your motor wires to the L1 (Open) and L2 (Close) output terminals. Link your physical switch to the S1 and S2 switch terminals.
3.Link to the Hub: Zigbee Gateway Pairing.Turn the power back on. Ensure your Zigbee Gateway is in pairing mode. Press and hold the reset button on the mini module (or toggle your physical switch 5 times) until the module beeps or flashes to enter pairing state.
4.Run Calibration: Accurate Movement.Open the Smart Life app, locate the module, and run the automatic motor calibration to ensure the app accurately tracks fully open and fully closed positions.
Frequently Asked Questions
Q: Does this module require a Zigbee Gateway Hub?
A: Yes, this is a Zigbee 3.0 device. It requires a compatible Zigbee Hub (such as Tuya/Smart Life, Sonoff, or a compatible Amazon Echo with a built-in hub) to connect to the network.
Q: Can I still use my existing physical wall switch?
A: Absolutely. The module is designed to connect directly to your traditional toggle or rocker curtain switch, keeping manual control fully functional.
Q: Can this handle heavy-duty outdoor shutter motors?
A: This module supports a maximum load of 3A, which is ideal for standard interior motorized curtains, roller blinds, and residential window shutters. Please check your motor's wattage specifications before installation.
